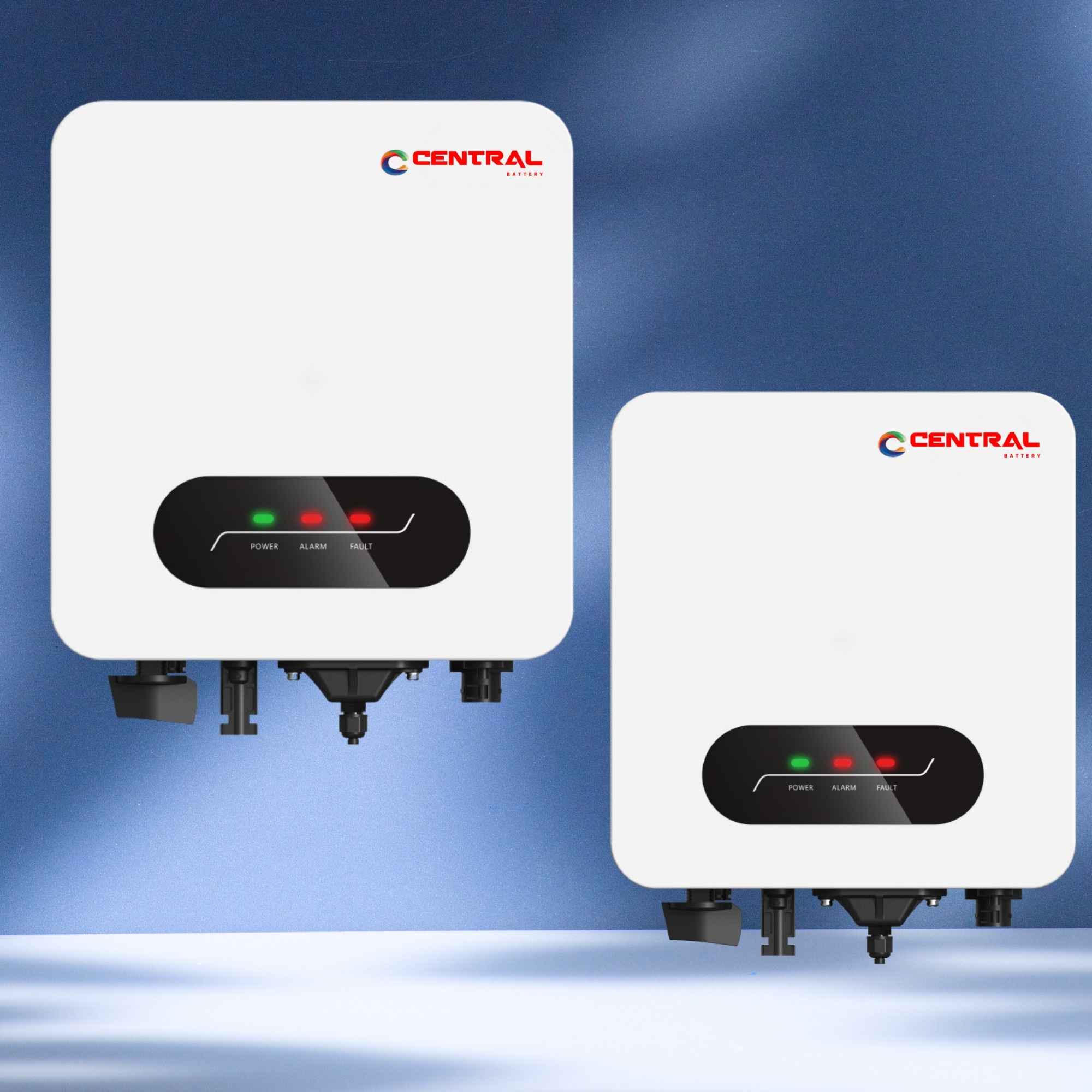

Grid Tied Inverter CGT 3.3K - 12K : These advanced inverters seamlessly convert solar energy into a reliable power source, ensuring an uninterrupted and efficient supply for all your needs. Explore our comprehensive range of products meticulously designed to meet a spectrum of energy demands, spanning from residential setups to commercial ventures.
| Model No | CGT 3.3K | CGT 4.4K | CGT 5.5K | CGT 6.6K | CGT 8.8K | CGT 11K | CGT 10K | CGT 12K |
|---|---|---|---|---|---|---|---|---|
| Input (DC) | ||||||||
| Max. input voltage | 1100V | |||||||
| Rated input voltage | 650V | |||||||
| Start-up voltage | 160V | |||||||
| MPPT operating voltage range | 140V~1000V | |||||||
| Number of MPPT trackers | 2 | |||||||
| Number of DC inputs | 1/1 | 1/2 | ||||||
| Max. input MPPT current | 15A/15A | 15A/30A | ||||||
| Max. input short circuit current | 22.5A/22.5A - 22.5A/45A | |||||||
| Output (AC) | ||||||||
| Rated output power | 3000W | 4000W | 5000W | 6000W | 8000W | 10000W | 10000W | 12000W |
| Max. apparent power | 3300VA | 4400VA | 5500VA | 6600VA | 8800VA | 11000VA | 10000VA | 13200VA |
| Max. output current | 5A | 6.7A | 8.3A | 10A | 13.3A | 16.7A | 15.2A | 20A |
| Output voltage range | 3/N/PE, 230/400Vac | |||||||
| Rated output voltage | 310Vac~480Vac | |||||||
| Rated output frequency | 50/60Hz | |||||||
| Output frequency range | 45Hz~55Hz/55Hz~65Hz | |||||||
| Active power adjustable range | 0~100% | |||||||
| THD | <3% | |||||||
| Power factor | 1 (adjustable +/-0.8) | |||||||
| Efficiency | ||||||||
| Max. efficiency | 98.4% | 98.5% | ||||||
| European efficiency | 97.5% | 98.0% | ||||||
| Protection | ||||||||
| DC reverse polarity protection | Yes | |||||||
| Anti-islanding protection | Yes | |||||||
| Leakage current protection | Yes | |||||||
| Ground fault monitoring | Yes | |||||||
| PV array string fault monitoring | Yes | |||||||
| DC switch | Yes | |||||||
| SPD | PV: type II, AC: type II | |||||||
| General Data | ||||||||
| Ambient temperature range | -30°C~+60°C | |||||||
| Self-consumption at night | <1W | |||||||
| Topology | Transformerless | |||||||
| Degree of protection | IP65 | |||||||
| Allowable humidity range | 0~100% | |||||||
| Max. operating altitude | 2000m | |||||||
| Cooling | Natural | |||||||
| Dimension (W×H×D) | 430×385×182mm | |||||||
| Weight | 17kg | 18kg | ||||||
| Communication | ||||||||
| Display | LCD & Bluetooth + APP | |||||||
| Communication | RS485/Wi-Fi | |||||||
| Standard | ||||||||
| IEC/EN 61000-6-1/2/3, IEC 61727, IEC 61683, EN 50549-1, IEC 62109-1/2, IEC 60068-2, EN 50438, VDE 0126-1-1, EN 62109, UNE 27002:2020 | ||||||||
