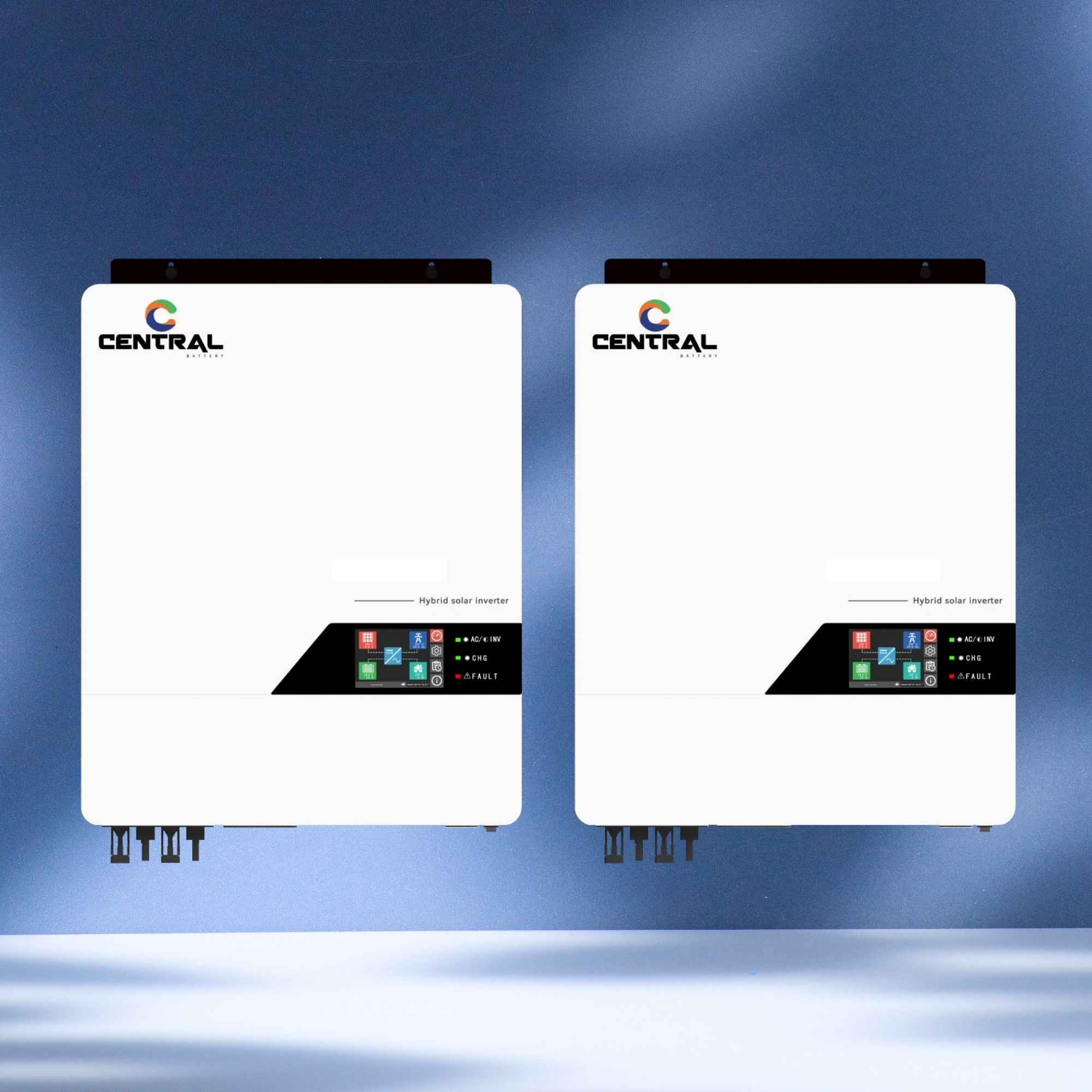

OFF GRID INVERTERS : With advanced features such as grid-tie capability, battery storage compatibility, and smart energy management systems, our hybrid inverters empower you to harness clean energy, reduce your carbon footprint, and save on utility costs. Whether you're looking to reduce reliance on the grid or seeking a sustainable energy solution for your home or business, our hybrid inverters provide the flexibility, reliability, and performance you need for a brighter, greener future.

Technical Specification EC II PRO Series 3000VA/3000W 4000VA/4000W 6000VA/6000W
AC INPUT
AC Voltage230VAC
Voltage Range170~280VAC (For Personal Computers) / 90~280VAC (For Home Appliances)
Frequency Range50/60Hz (Auto sensing)
AC OUTPUT
Surge Power6400VA8000VA12000VA
AC Voltage Regulation (Battery Mode)230VAC ± 5%
Rated Frequency50/60Hz
Efficiency (Peak)93%
Transfer Time10ms (For Personal Computers); 20ms (For Home Appliances)
BATTERY
Battery Voltage24VDC48VDC
Floating Charge Voltage27VDC54VDC
Overcharge Protection33VDC63VDC
Battery TypeLithium/Lead-acid
SOLAR CHARGER & AC CHARGER
Maximum PV Array Open Voltage (V)500VDC
Maximum PV Array Power
MPPT Voltage Range (V)30~450VDC60~450VDC
Maximum Input Current15A20A27A
MPPT Tracker / Strings1
Maximum Solar Charge Current100A120A
Maximum AC Charge Current80A100A
Maximum Charge Current100A120A
PROTECTION & FEATURE
AC OvercurrentYes
AC OvervoltageYes
Over Temperature ProtectionYes
Smart Load ManagementNO / Yes (Optional)
On GridYes (Optional)
GENERAL PARAMETERS
Operation Temperature-10°C ~ 50°C
Relative Humidity5% ~ 95% (Non-condensing)
Altitude(2000m Derating)
Dimensions (DxWxH mm)334×270×105400×300×133
Net Weight (KG)5.58.910
COMMUNICATION
InterfaceStandard RS232, USB, CAN & RS485; Optional WiFi, Bluetooth
