Tabular Batter High Performance Tubular Batteries

Central Tall Tubular Batteries are heavy weight batteries made using Long tubular spine from high pressure die casting machines. Our Tubular batteries are capable to meet energy storage needs with higher efficiency. We ensure consistent quality of all products and due to that our batteries are suitable for higher back up time with reliability and efficiency.

PRODUCT FEATURES

Higher back up time
Higher efficiency due to very low self-discharge
Consistent power supply
Less Water losses
Quick recharging time
Low generation of fumes
Suitable for Deep Discharge requirements
Specially designed vent plugs
Designed for longer life cycle

TECHNICAL SPECIFICATION

Model No	Nominal Voltage (Volt)	C20 Capacity at 27°C till 10.5V (Ah)	Overall Dimension (±3mm)				Battery Packed Wt. (±5%)
			Length	Width	Height	Height up to Terminal top
160 TT	12V	160 Ah	500	187	427	440	60
200 TT	12V	200 Ah	500	187	427	440	63
230 TT	12V	230 Ah	500	187	427	440	67
250 TT	12V	250 Ah	500	187	427	440	74

CONSTANT POWER DISCHARGE PERFORMANCE*

Model No	Backup Duration (HH:MM) at
Model No	500W	400W	300W	200W	100W
160 TT	03:00	04:00	05:00	09:40	20:30:00
200 TT	03:25	04:30	06:40	10:40	24:30:00
230 TT	04:10	05:00	07:30	12:00	26:20:00
250 TT	04:40	05:30	09:00	14:00	30:00:00

Reliable Tubular Battery Series

Choose from our efficient SI 165TT or high-capacity SI 220TT models—engineered for every energy need

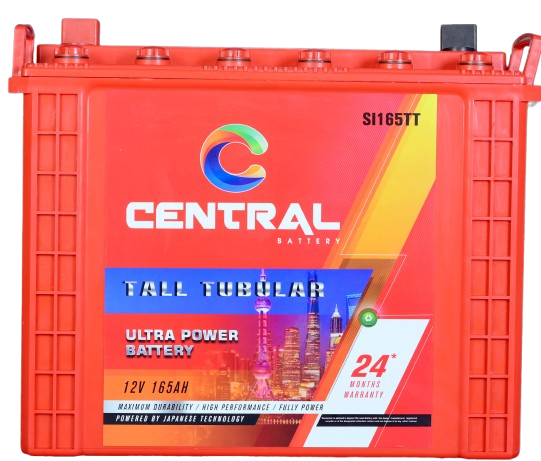

🔋 SI 165TT – Efficient Power for Moderate Needs

The SI 165TT tubular battery is designed to meet the power demands of homes, small shops, and offices with moderate energy requirements. With superior backup performance, quick recharge capability, and a durable tubular plate structure, this battery is a cost-effective solution for areas with frequent power outages. It ensures smooth operation of your essential devices without interruption.

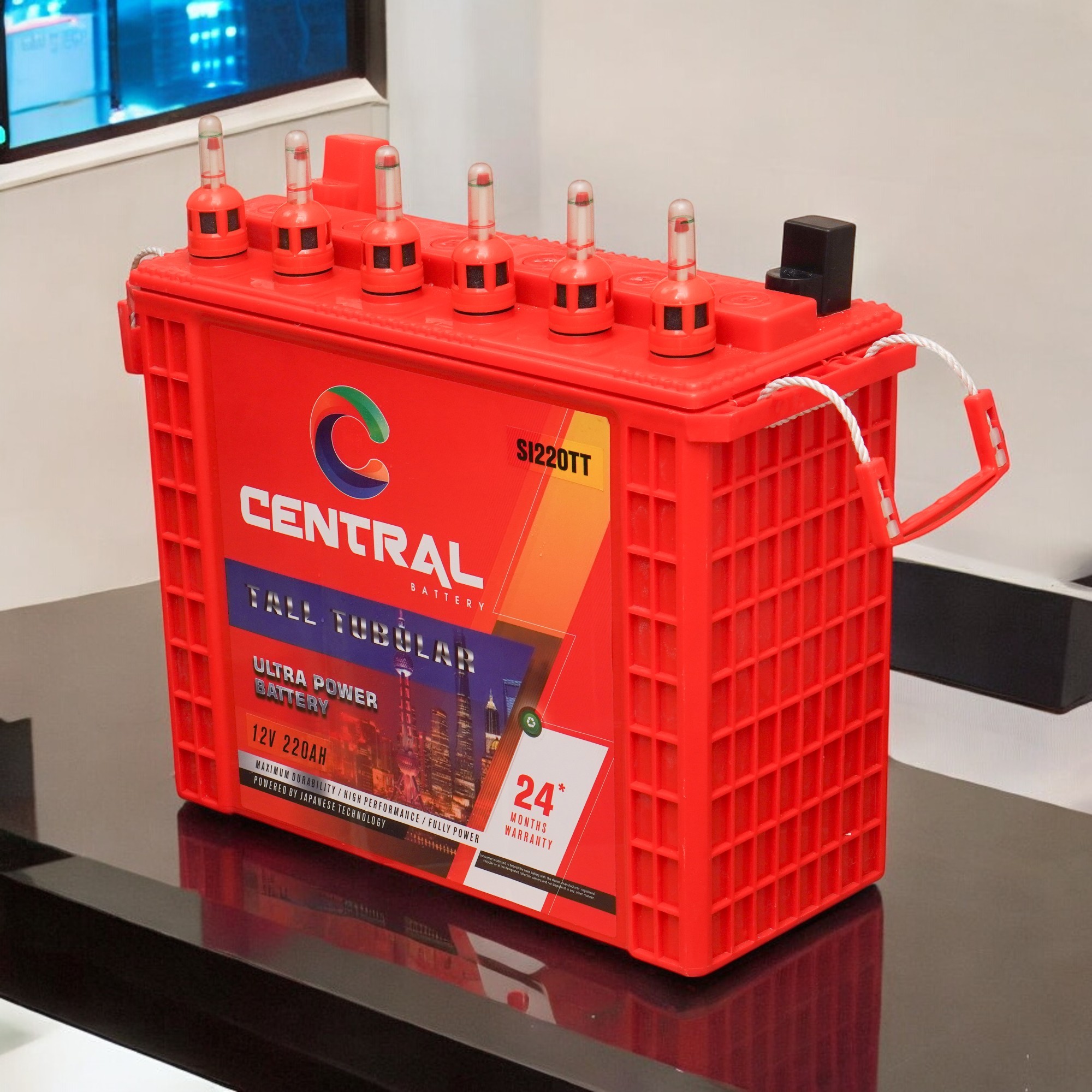

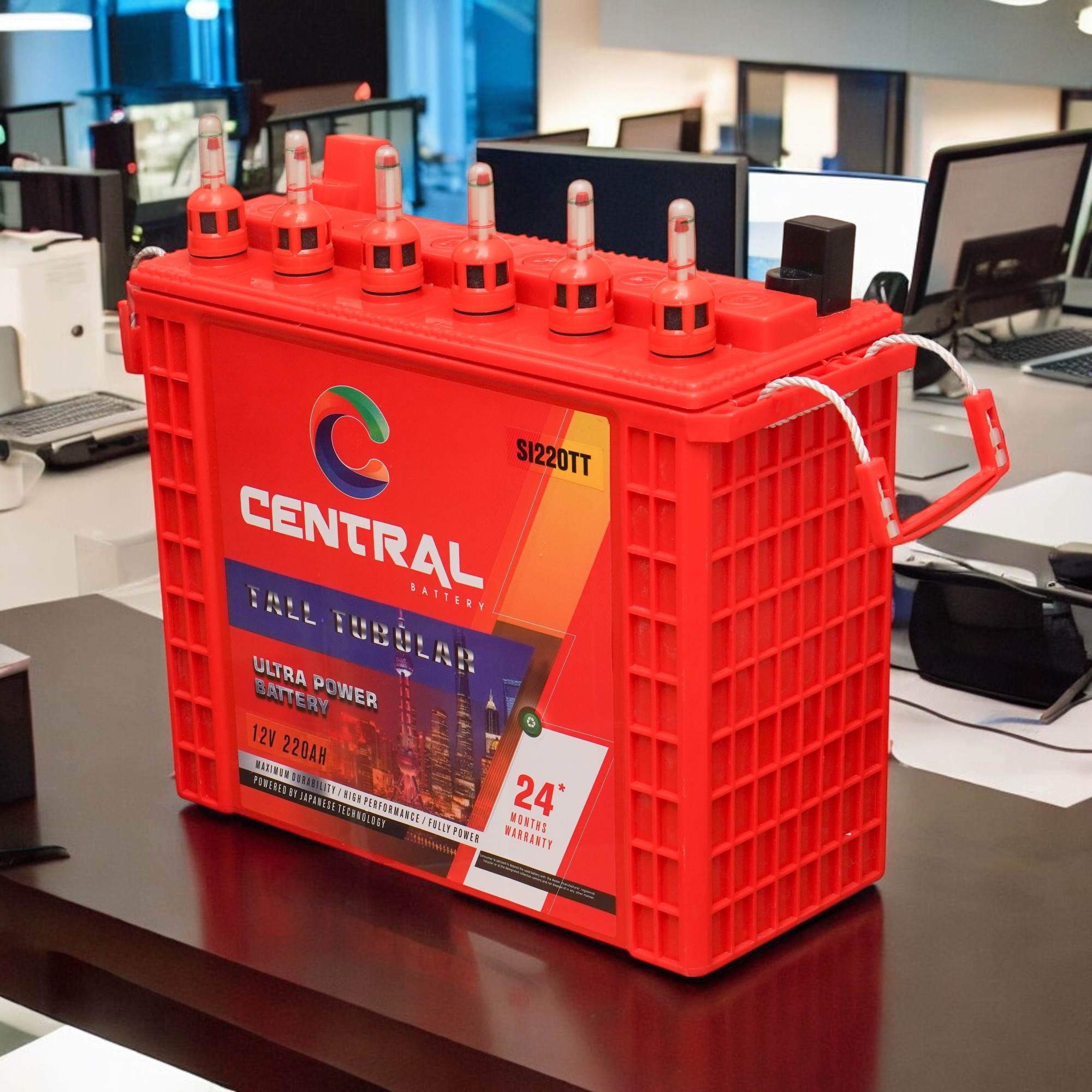

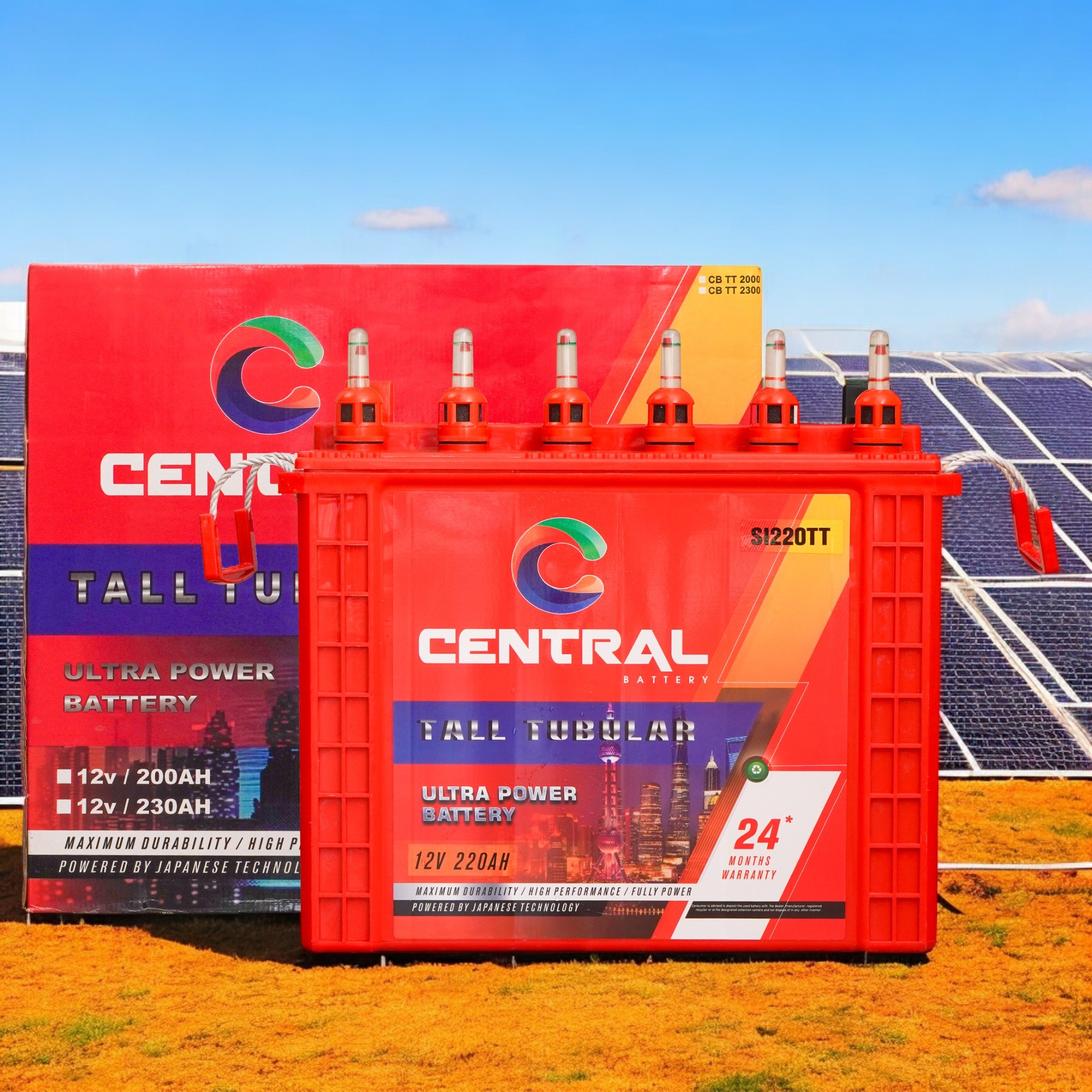

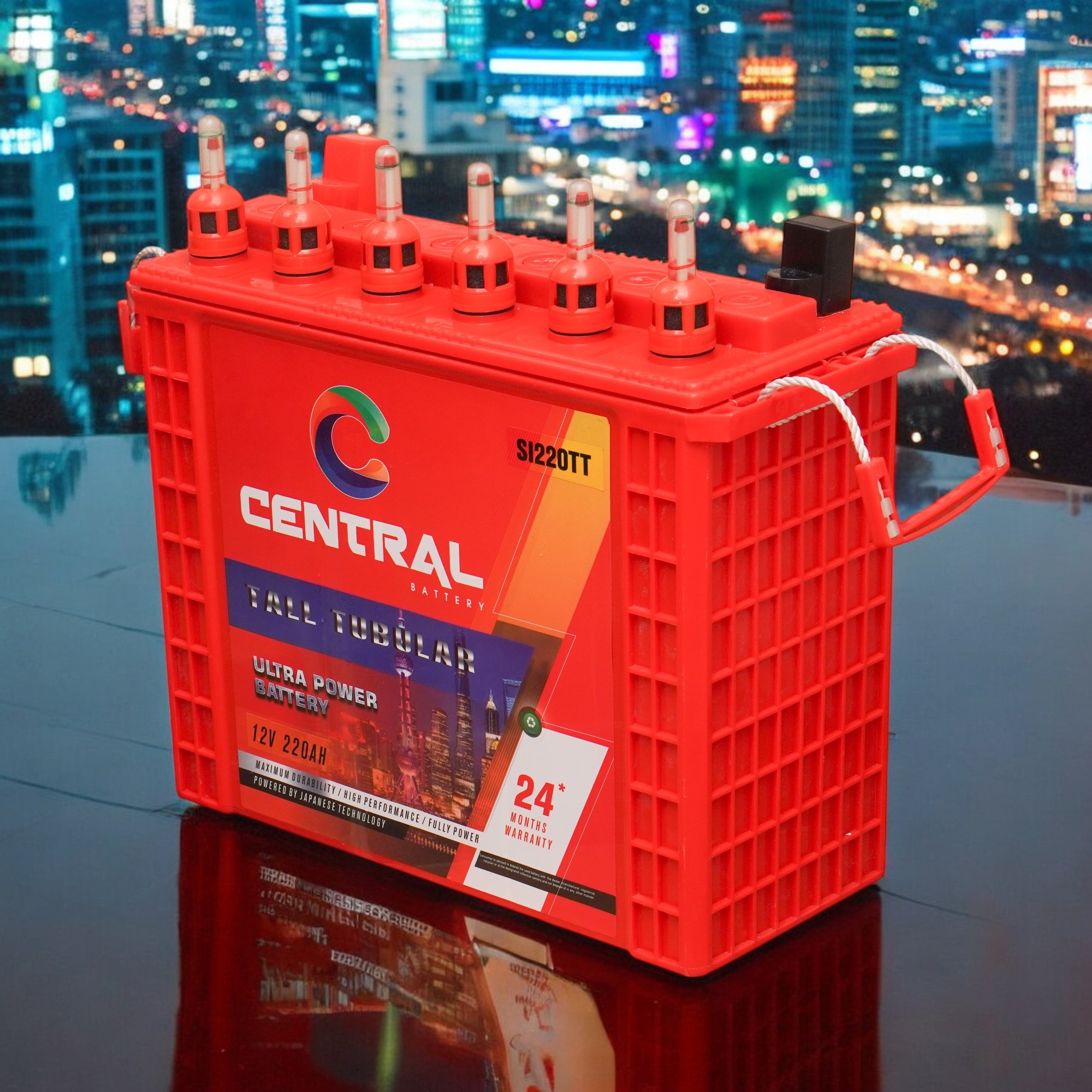

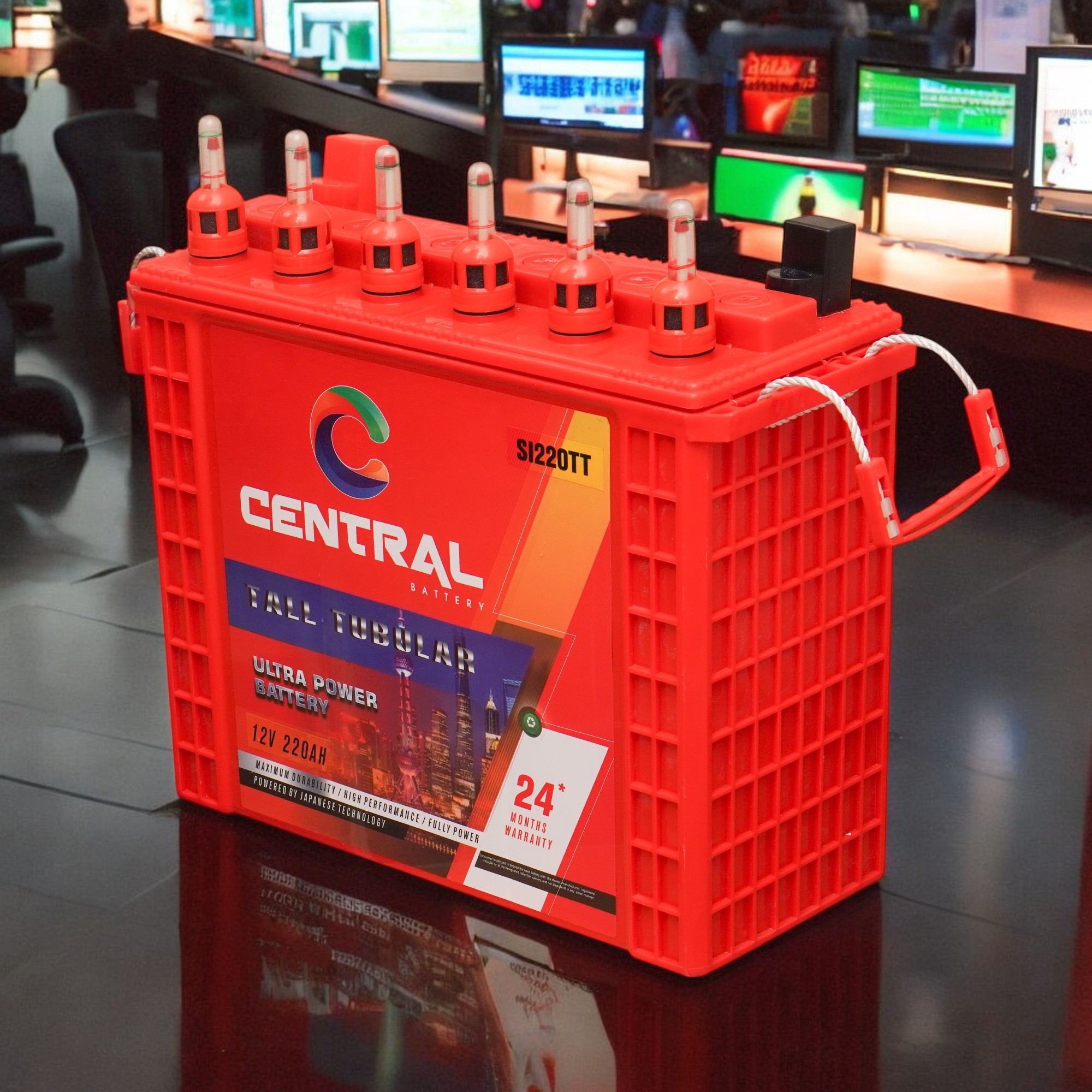

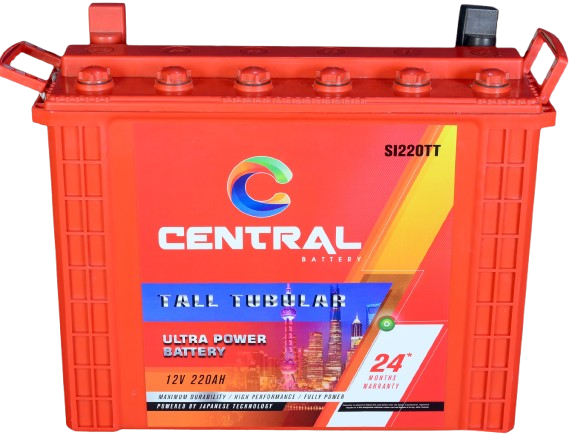

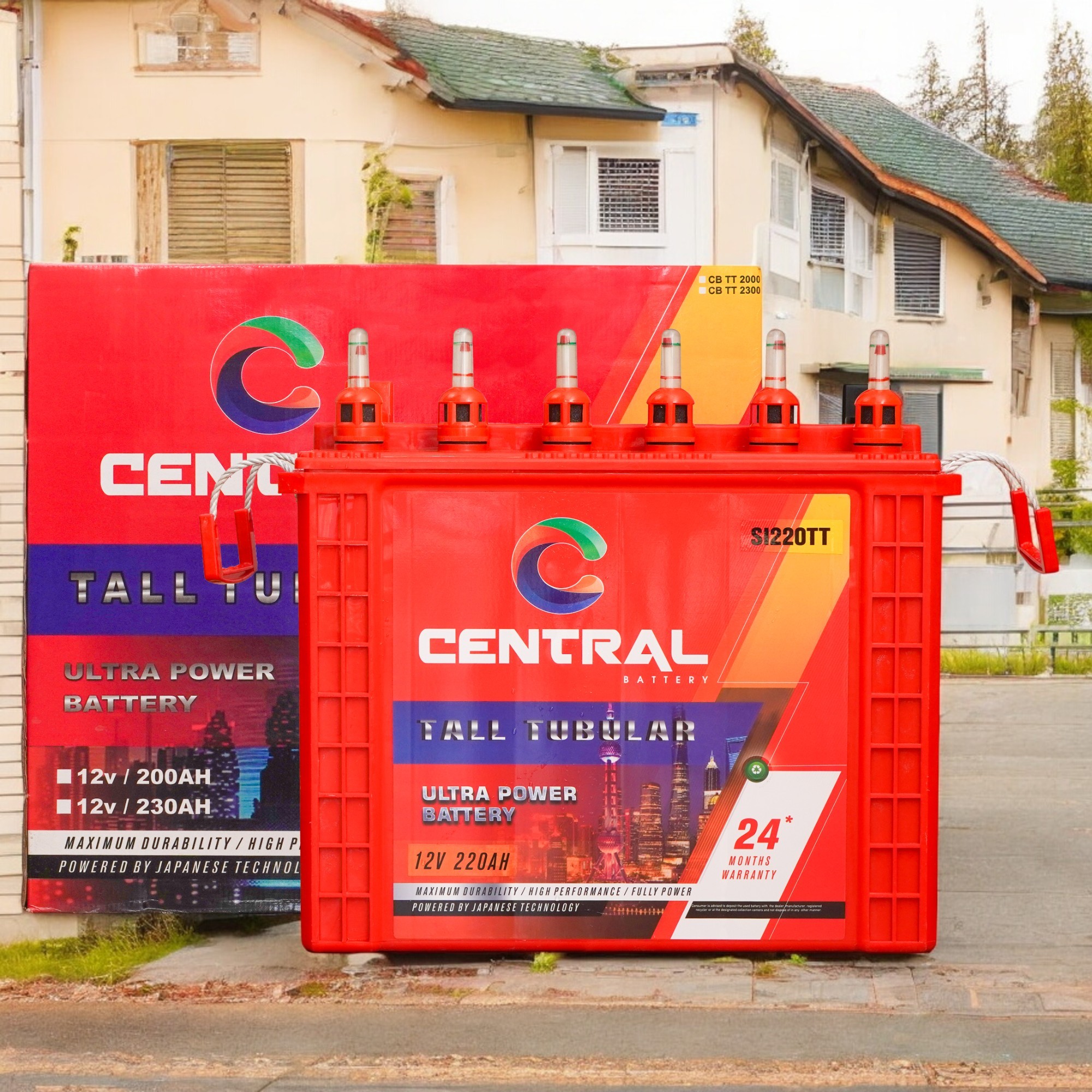

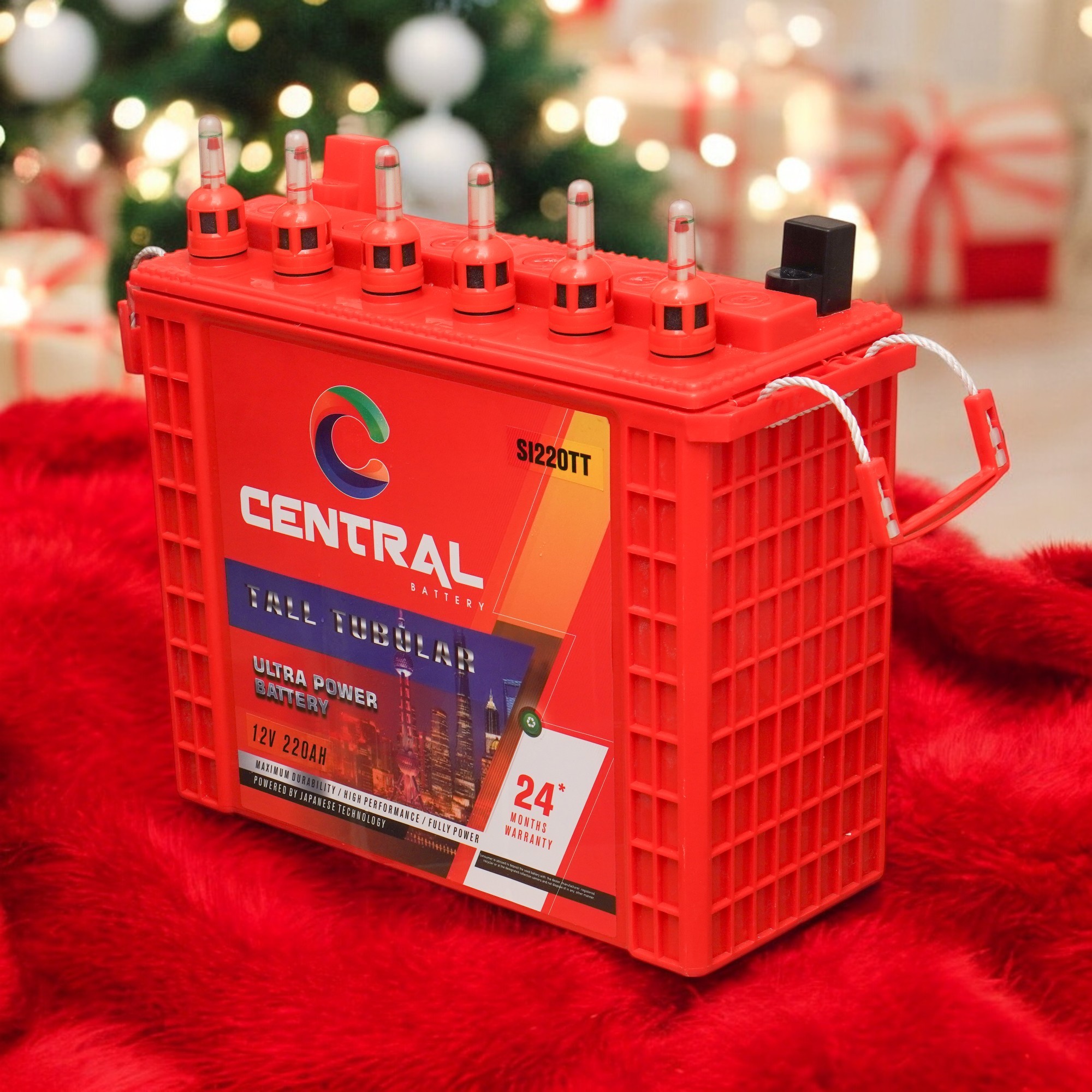

🔋 SI 220TT – Heavy-Duty Backup for High Power Demand

Built for higher energy needs, the SI 220TT tubular battery delivers long-lasting and reliable performance. Perfect for large households, small businesses, and solar setups, it provides extended backup time and enhanced efficiency. Its robust construction and deep cycle design make it ideal for areas with long power cuts or heavy usage environments.
