Central VRLA Batteries High-Efficiency Inverter Solutions for Residential & Commercial Use

MODEL	Voltage (V)	Capacity (Ah)	Battery Dimension (mm)				(kg) (±3%)	Terminal	Bolt
			L	W	H	TH
CBA12-24	12	24	166	126	174	174	7.7	T2	M6×16
CBA12-26	12	26	166	175	126	126	8.3	T2	M6×16
CBA12-35	12	35	196	130	155	167	10	T2	M6×16
CBA12-40	12	40	198	166	172	172	12.3	T2	M6×16
CBA12-45	12	45	198	166	174	174	13	T2	M6×16
CBA12-50	12	50	229	138	208	212	15.5	T2	M6×16
CBA12-55	12	55	229	138	208	212	16.2	T3	M6×16
CBA12-65	12	65	350	167	178	178	20.5	T3	M6×16
CBA12-70	12	70	350	167	178	178	21.5	T3	M6×16
CBA12-75	12	75	260	169	211	215	22	T3	M6×16
CBA12-80	12	80	260	169	211	215	23.5	T3	M8×16
CBA12-85/90	12	85/90	307	174	214	219	25	T3	M6×16
CBA12-100C	12	100	307	169	211	216	27	T3	M6×16
CBA12-100A	12	100	331	174	214	219	29	T4	M6×16
CBA12-120B	12	120	407	173	210	233	33	T5	M8×16
CBA12-120A	12	120	407	173	210	233	34	T5	M8×16
CBA12-135	12	135	341	173	283	283	41	T5	M8×16
CBA12-150B	12	150	484	171	241	241	41	T4	M8×16
CBA12-150A	12	150	484	171	241	241	43	T4	M8×16
CBA12-160	12	160	532	206	216	222	48.5	T4	M8×16
CBA12-180	12	180	532	206	216	222	53	T4	M8×16
CBA12-200B	12	200	522	240	219	225	56	T5	M8×16
CBA12-200A	12	200	522	240	219	225	58.2	T5	M8×16
CBA12-230	12	230	522	240	219	225	61	T5	M8×16
CBA12-250	12	250	520	268	220	225	66	T5	M8×16
CBA6-180	6	180	260	180	247	251	27.5	T5	M8×16
CBA6-180A	6	180	306	168	220	226	27	T5	M8×16
CBA6-200	6	200	306	180	247	251	29.5	T5	M8×16
CBA6-200A	6	200	323	178	224	229	29.5	T5	M8×16

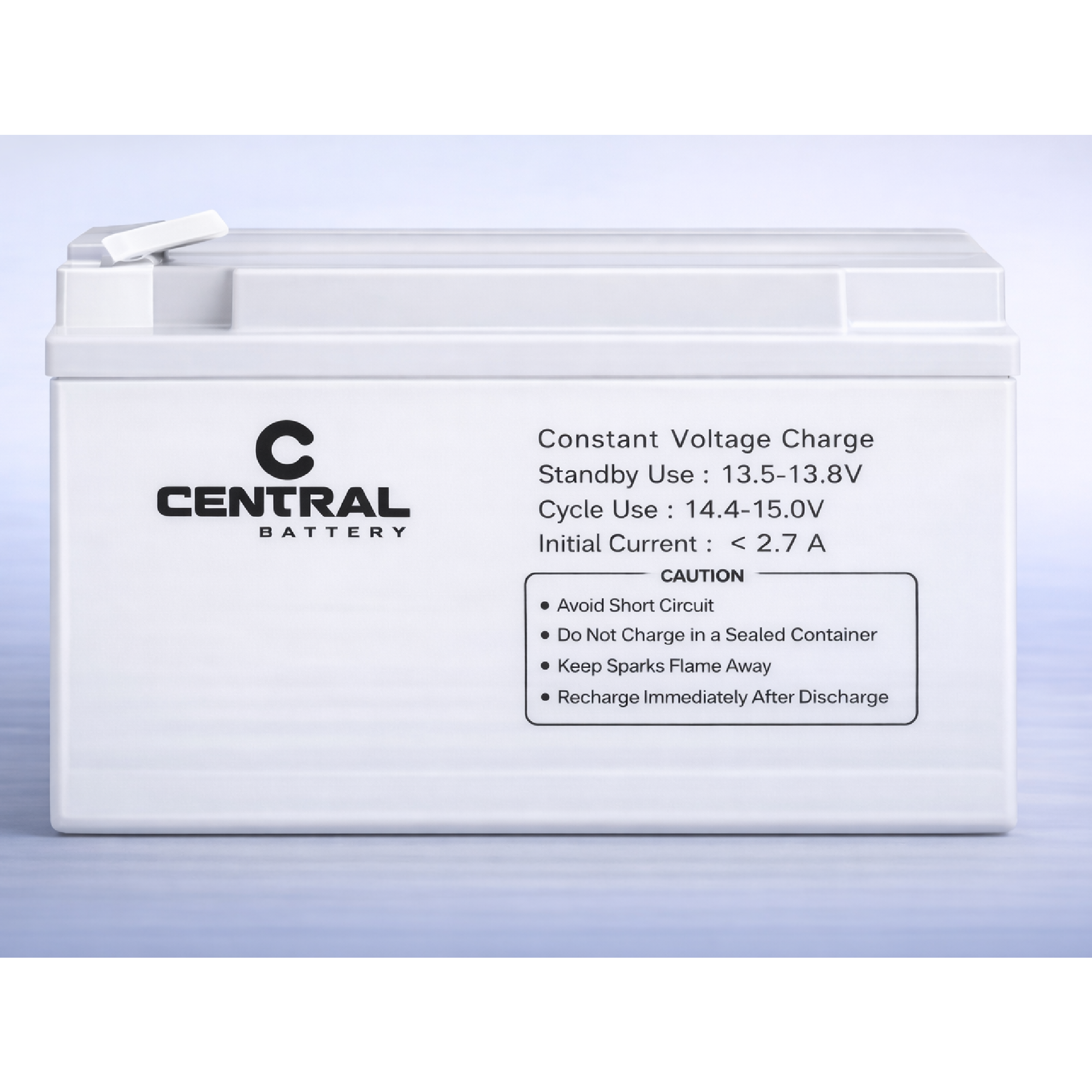

VRLA Battery
